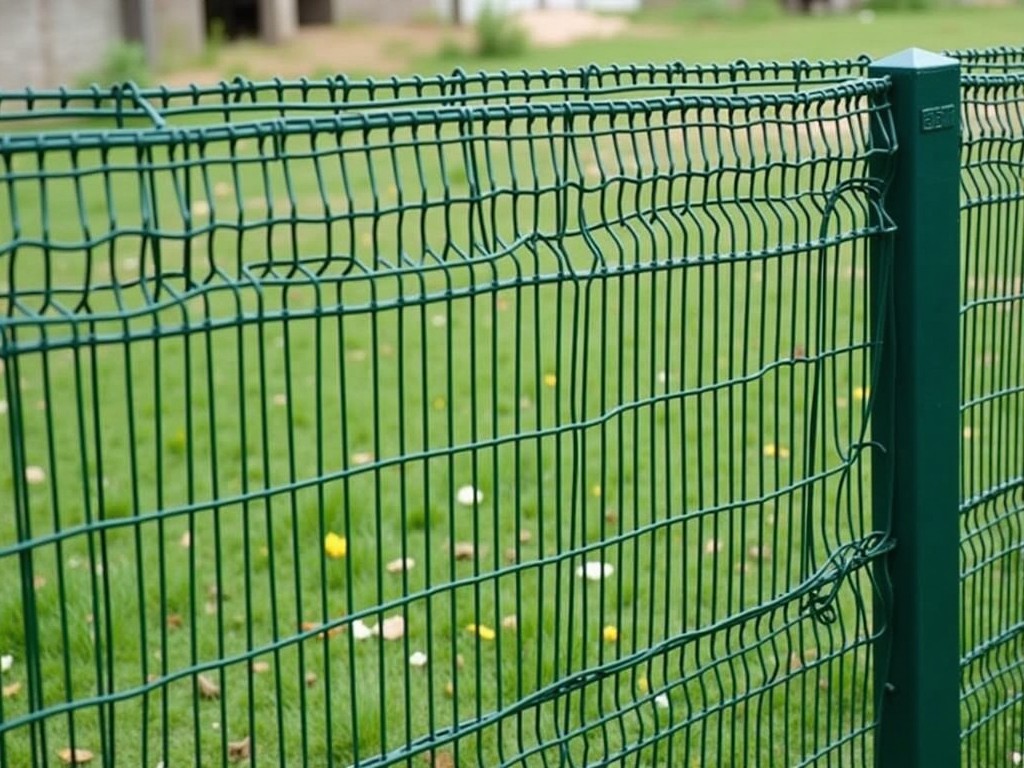

Request a QuoteOEM Woven Wire Garden Fence Panel Top
In garden and landscape installations, the top edge of a woven wire fence panel provides both a safety barrier and a finished visual line that prevents snagging of clothing or vegetation.
Material and Coating
The wire forming the panel top is cold‑drawn low‑carbon steel with a diameter typically ranging from 1.2 mm to 2.0 mm, delivering a tensile strength between 350 MPa and 550 MPa before any surface treatment.
To withstand outdoor exposure, the wire is hot‑dip galvanized to a minimum zinc coating of 55 g/m²; alternatively, a PVC over‑coat of 0.3 mm thickness can be applied for added colour and abrasion resistance.
Mesh Geometry
The woven mesh maintains a uniform square opening of 50 mm × 50 mm, while the top wire is formed into a continuous loop that is crimped and locked to the adjacent vertical wires, producing a flat, smooth profile without sharp protrusions.
Typical Applications
- Residential garden boundaries where child and pet safety is a priority
- Commercial landscaping around parks, playgrounds, and recreational facilities
- Agricultural enclosures for small livestock and poultry requiring a non‑abrasive top edge
- Temporary site fencing for events or construction zones needing quick installation and removal
Typical Specifications
| Parameter | Typical Value / Range |
|---|---|
| Wire diameter | 1.2 mm – 2.0 mm |
| Tensile strength (pre‑coat) | 350 MPa – 550 MPa |
| Coating type | Hot‑dip Zn ≥55 g/m² or PVC 0.3 mm |
| Mesh opening | 50 mm × 50 mm |
| Panel height (standard) | 600 mm – 2400 mm (in 100 mm increments) |
| Panel width (module) | 300 mm – 1200 mm (in 300 mm steps) |
| Weight per square meter | 2.5 kg/m² – 4.0 kg/m² (depending on gauge) |
Customization Options
Panel dimensions, wire gauge, and coating type can be tailored to project needs; height adjustments are available in 100 mm increments from 600 mm to 2400 mm, while width modules change in 300 mm steps to suit various span requirements.
Manufacturing Process
Automated looms weave the wire under controlled tension, followed by a precision crimping operation that secures the top wire to the mesh without creating sharp edges, ensuring consistent panel flatness.
Quality Control
Each panel is checked for dimensional tolerance (±2 mm), inspected visually for uniform weave, and subjected to adhesion testing of the galvanized coating per ASTM A123 to verify long‑term corrosion resistance.
Packaging and Shipping
Finished panels are stacked flat with corrugated cardboard interleaves, bound with steel straps, and placed on ISPM‑15 compliant wooden pallets; the pallets are shrink‑wrapped to protect against moisture during transit.
Frequently Asked Questions
- Can dimensions be customized? Yes, panel height and width can be adjusted in the increments stated above; custom lengths are available upon request.
- What information is required before quotation? Required details include desired height, width, wire diameter, coating type, quantity, and any special tolerances or certifications.
- What materials are available? Standard low‑carbon steel with hot‑dip galvanization or PVC over‑coat; alternative alloys such as stainless steel can be supplied on request.
- How is quality inspected? Dimensional checks, visual weave inspection, and coating adhesion tests are performed on every batch according to internal standards aligned with ASTM specifications.
Contact Us
For technical drawings, sample requests, or a formal quotation, contact our engineering team via the inquiry form.
