Oem Garden Woven Wire Rolled Fencing Mesh B2B Supplier

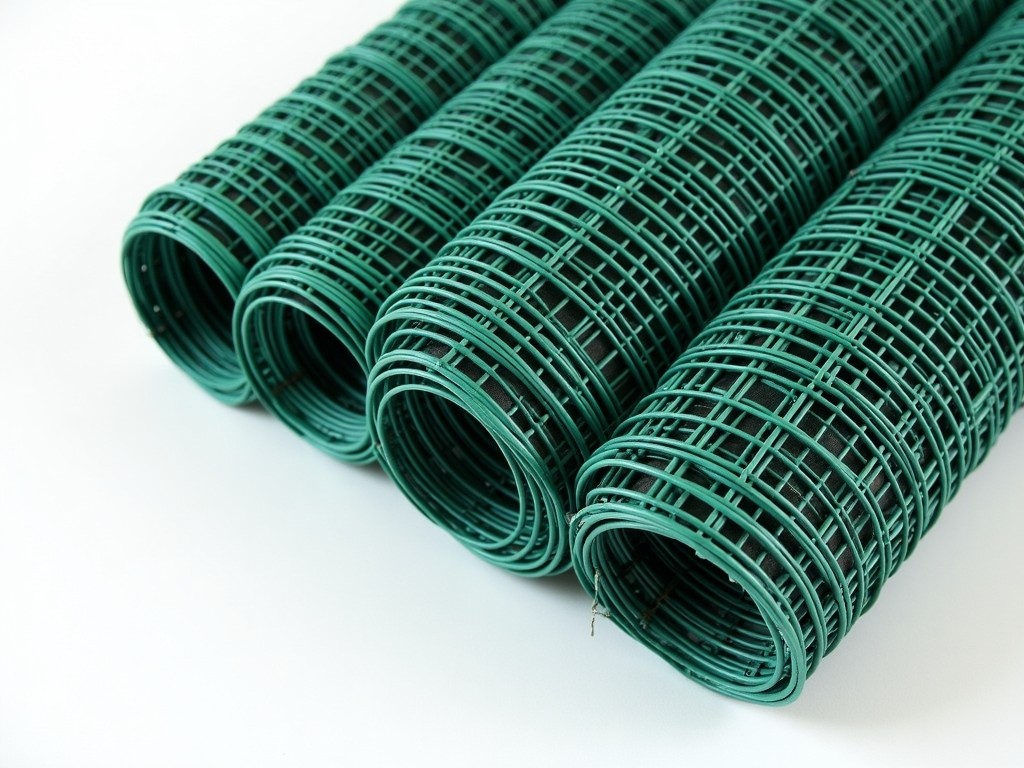

OEM garden woven wire rolled fencing mesh is produced as a continuous roll of interlocked low‑carbon steel wires forming a uniform hexagonal or square opening pattern. The roll format allows rapid
Request a QuoteOEM Garden Woven Wire Rolled Fencing Mesh – B2B Supplier
OEM garden woven wire rolled fencing mesh is produced as a continuous roll of interlocked low‑carbon steel wires forming a uniform hexagonal or square opening pattern.
The roll format allows rapid deployment across large perimeters while maintaining consistent tension and alignment.
Material Composition
Wire is typically drawn from low‑carbon steel rods with a carbon content below 0.12 % to ensure good ductility and weldability.
Depending on the required corrosion resistance, the wire can be supplied with a hot‑dip zinc coating, a zinc‑alum alloy coating, or left uncoated for indoor use.
Coating weight is measured in grams per square metre and directly influences the expected service life in outdoor environments.
Mesh Geometry & Roll Specifications
The mesh geometry is defined by the opening size (distance between parallel wires) and the wire diameter, which together determine the open area ratio.
Standard rolls are supplied in widths ranging from 0.5 m to 2.4 m and lengths from 10 m to 100 m, with the option to customize both dimensions.
| Parameter | Typical Range | Notes |
|---|---|---|
| Wire diameter | 0.8 mm – 2.5 mm | Affects stiffness and load capacity |
| Opening size | 12 mm – 100 mm | Determines exclusion capability |
| Roll width | 0.5 m – 2.4 m | Custom widths available |
| Roll length | 10 m – 100 m | Custom lengths upon request |
| Weight per metre | 0.4 kg/m – 3.2 kg/m | Depends on diameter and coating |
| Tensile strength (wire) | 350 MPa – 550 MPa | Typical for low‑carbon steel |
| Zinc coating weight | 60 g/m² – 120 g/m² | Applicable when coated |
Mechanical Performance
Tensile strength of the wire governs the mesh’s ability to resist impact from animals or falling debris.
Elongation at break typically falls between 10 % and 20 %, providing enough flexibility to accommodate ground movement without permanent deformation.
The interlocking geometry distributes load across multiple wires, reducing stress concentration at any single joint.
Typical Applications
In garden and landscape settings, the mesh provides a physical barrier that prevents small mammals from accessing planting beds while allowing sunlight and water to penetrate.
For livestock enclosures, the hexagonal opening size can be selected to exclude specific species; for example, a 25 mm opening effectively contains goats while excluding smaller rodents.
In civil engineering, the same product is used as temporary erosion control on slopes, where its flexibility conforms to uneven terrain and facilitates rapid installation.
Quality Assurance & Testing
Dimensional verification is performed on each roll using laser‑based gauges to confirm opening size and wire diameter within ±0.1 mm tolerance.
Coating adhesion is assessed by the ASTM B117 salt‑spray test, with a minimum of 500 hours without red rust indicating acceptable performance for outdoor use.
Tensile samples are cut from the wire and tested according to ISO 6892‑1, with results recorded for each batch.
Customization Options
Wire diameter can be adjusted from 0.8 mm to 2.5 mm to change the mesh’s stiffness and load‑bearing capacity.
Opening size ranges from 12 mm for fine exclusion to 100 mm for agricultural fencing, with custom shapes available upon request.
Edge treatments include selvedge wire, reinforced borders, or PVC capping to prevent fraying and improve handling.
Roll length and width can be tailored to match site‑specific layout constraints, reducing waste and installation time.
Packaging & Logistics
Finished rolls are wrapped in UV‑stabilized polyethylene film to protect the coating from moisture and abrasion during transit.
Each roll is placed on a wooden pallet with corner protectors and secured with polyester straps, meeting ISPM‑15 standards for international shipment.
Labeling includes batch number, wire diameter, coating type, and roll dimensions for traceability.
FAQ
- Can dimensions be customized? Yes, wire diameter, opening size, roll width and length can be adjusted to project requirements.
- What information is required before quotation? Required details include wire diameter, coating type, opening size, roll dimensions, quantity, and delivery destination.
- What materials are available? Low‑carbon steel with hot‑dip zinc, zinc‑alum, or uncoated finish; alternative alloys upon request.
- How is quality inspected? Each roll undergoes dimensional laser checks, coating adhesion salt‑spray testing, and tensile sampling per batch.
Call to Action
To discuss technical requirements, request a quotation, or arrange a sample shipment, contact our engineering team using the link below.
