Low Price Vinyl Coated Chain Link Fence – Cost Effective Export Solution

Vinyl coated chain link fence combines a galvanized steel core with a polymeric outer layer to provide corrosion resistance and aesthetic options for perimeter security. The coating process applies a uniform vinyl thickness over a zinc‑galvanized wire, creating a barrier that limits moisture contact with the steel.

Technical Specifications

Typical Applications

The vinyl coating adds a smooth, low‑maintenance surface that resists graffiti and chemical splashes, making the fence suitable for environments where appearance and durability are both important.

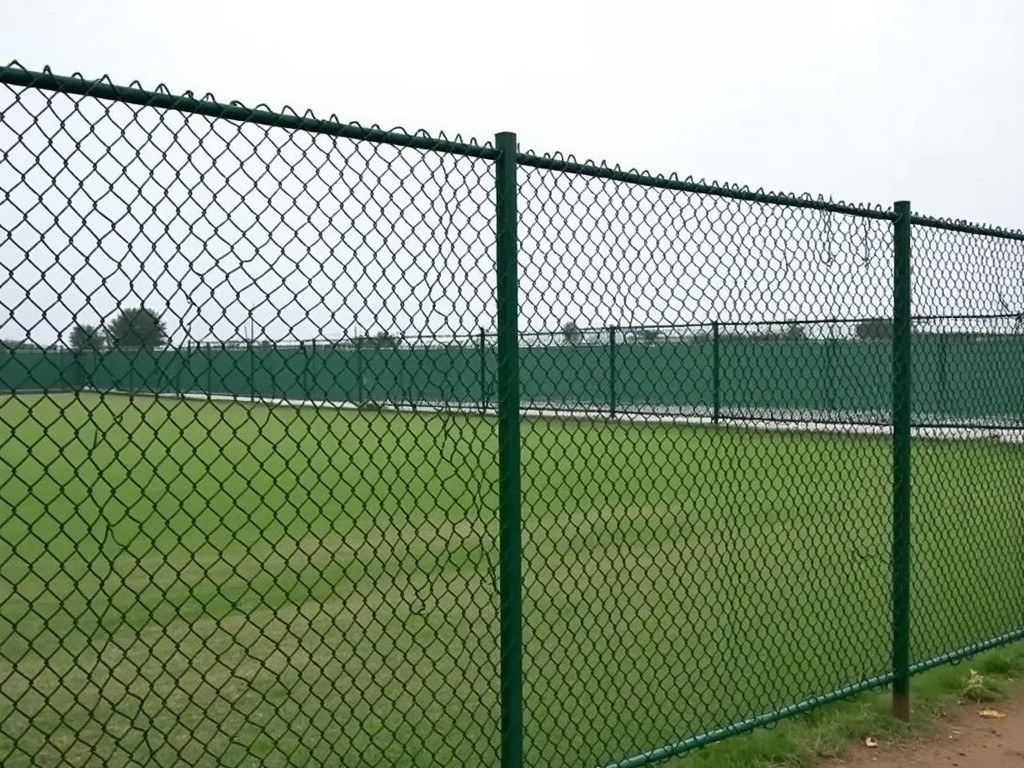

• Sports facilities – the coating prevents rust on courts and fields while providing a clean visual boundary.
• Agricultural enclosures – resistance to fertilizers and pesticides extends service life in harsh soil conditions.
• Construction site perimeter – quick installation and reusable panels reduce temporary barrier costs.
• Security perimeters for warehouses – the vinyl layer limits corrosion from indoor humidity and occasional wash‑downs.
• Municipal pathways – low‑profile finish blends with landscaping while deterring unauthorized access.

Quality Control Philosophy

Each production line incorporates in‑line monitoring of coating thickness using non‑contact laser gauges, with feedback loops that adjust extrusion speed to maintain the target 0.35 mm vinyl layer.

Adhesion is verified by cross‑hatch tape tests (ASTM D3359) on a sample from every batch, and zinc coating weight is checked via magnetic induction probes before vinyl application.

Finished rolls undergo a visual inspection for surface defects, followed by a tensile test on a random wire specimen to confirm mechanical properties meet the specified 350 MPa minimum.

Customization Options

Because the fence is produced to order, several parameters can be adjusted to match project specifications without changing the core manufacturing process.

• Wire gauge – options from 6 GA (4.9 mm) to 11 GA (3.0 mm) for varying load requirements.
• Vinyl color – standard black, green, white, or custom RAL matches upon request.
• Mesh size – alternative openings such as 38 mm × 38 mm or 75 mm × 75 mm for specific security or visibility needs.
• Height and roll length – cut‑to‑length panels or continuous rolls up to 30 m for large‑scale installations.
• Additional treatments – UV‑stabilized vinyl additives or anti‑static coatings available for specialized environments.

Frequently Asked Questions

Can dimensions be customized?

Yes. Wire gauge, coating thickness, mesh opening, height and roll length are all adjustable based on the project data you provide.

What information is required before quotation?

To generate an accurate quote we need the desired fence height, total linear length, wire gauge, vinyl color, mesh size and any special packaging or labeling requirements.

What vinyl colors are available?

Standard inventory includes black, forest green and white. Custom RAL colors can be supplied with a minimum order quantity, typically 500 m of fence.

How is quality inspected before shipment?

Each roll undergoes thickness verification, adhesion testing and a final visual inspection. Test reports are available upon request.

What packaging methods are available for export?

Fence rolls are wrapped in UV‑stabilized polyethylene film, placed on wooden pallets and secured with steel straps. Corner protectors and moisture‑absorbing packets are added for long‑distance shipments.

What is the typical production lead time?

Lead time varies with order size and customization, but standard specifications usually ship within 2‑3 weeks after receipt of deposit.

How are samples arranged?

Sample sections (1 m × 1 m) can be sent via express courier. The cost of the sample and shipping is credited against the first purchase order.

For a detailed quotation that includes unit pricing, freight estimates and lead‑time confirmation, please provide your project specifications.
