Low Price Chain Link Fence Cost Per Linear Foot Installed Supplier

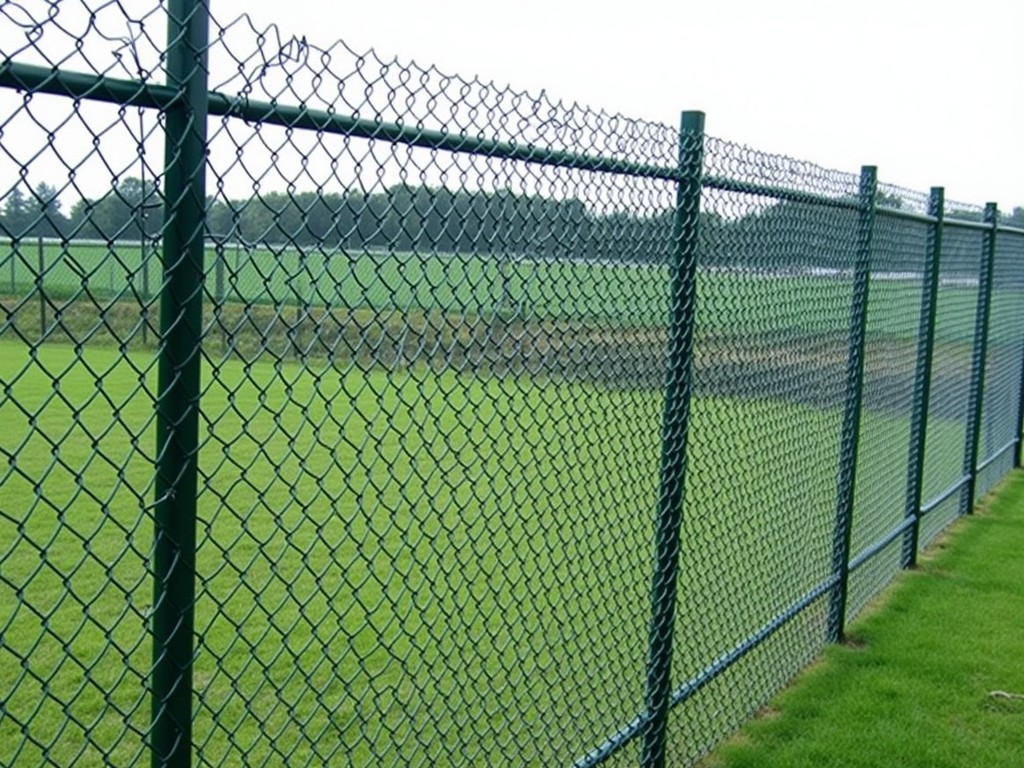

Chain link fence consists of interwoven steel wire forming a diamond pattern, typically supported by steel posts set in concrete. The system provides a barrier that is visible, allows airflow, and resists climbing when properly tensioned.

Material Composition and Options

The fabric is usually made from low‑carbon steel wire with a galvanized coating to inhibit rust. Wire gauges commonly range from 6 # (4.88 mm) to 9 # (3.76 mm), and mesh openings vary from 2 in to 2‑1/4 in. Optional coatings include a thick zinc layer (galvanized after weaving) or a polyvinyl chloride (PVC) over‑coat in colors such as black, green, or brown for added corrosion resistance and aesthetic integration.

• 6 # gauge, 2‑in mesh – high tensile strength, suitable for high‑security perimeters.
• 8 # gauge, 2‑in mesh – balanced cost and strength for general industrial use.
• 9 # gauge, 2‑in mesh – economical choice for temporary or low‑traffic boundaries.

Cost Factors Influencing Price Per Linear Foot Installed

Total installed cost per linear foot combines material expense, labor for post setting and fabric attachment, and site‑specific variables such as soil condition, slope, and gate requirements. Material price fluctuates with wire gauge, coating type, and fence height, while labor rates depend on regional wage standards and accessibility.

Typical cost ranges (material + labor) for a straight‑run fence on level ground are shown below. Values are averages; actual quotes vary with project length, gate count, and any additional features like barbed wire or privacy slats.

Installation Sequence

Posts are augured to a depth of at least one‑third the fence height, set in concrete, and allowed to cure. Terminal posts receive tension bands; line posts are spaced typically 10 ft apart. The fabric is unrolled, attached to tension bands with tie wires, and stretched using a come‑along or power stretcher before being secured to all posts. Gates are installed with hinges and latch hardware matching the post configuration.

Typical Industrial Applications

In manufacturing facilities, chain link fence secures perimeter boundaries while permitting visual inspection of outdoor storage areas. Its open design reduces wind load, making it suitable for exposed sites such as utility substations or railway yards. Sports complexes use it for field containment because it provides a clear sightline for spectators and athletes without obstructing light.

Quality Control Considerations

Galvanization thickness is measured per ASTM A123, with a minimum of 1.2 oz/ft² for general use and up to 2.0 oz/ft² for harsh environments. Tensile strength of the wire is verified to exceed 50 kpsi, ensuring the fabric resists sagging under load. PVC adhesion is tested via cross‑hatch tape testing to confirm coating integrity after fabrication.

Customization Pathways

• Height options from 3 ft to 12 ft in 1‑ft increments.
• Wire gauge selection based on load requirements.
• Coating choices: galvanized, galvanized‑then‑PVC, or aluminum‑coated for marine settings.
• Add‑ons: barbed wire, razor ribbon, privacy slats, or vinyl lattice for visual screening.
• Gate varieties: swing, sliding, or cantilever with automated operator compatibility.

Frequently Asked Questions

• Can the fence height be adjusted after installation? Adjusting height requires removing and resetting posts; it is more cost‑effective to select the final height during design.
• What information is needed for an accurate quote? Provide total linear footage, desired height, wire gauge, coating type, gate count and type, and site conditions (soil, slope, accessibility).
• How is the fence protected against corrosion in coastal areas? A PVC over‑coat over a galvanized core or an aluminum‑alloy wire provides enhanced resistance to salt‑spray corrosion.

For a detailed quotation tailored to your project specifications, please reach out to our technical team.

Contact us for a quote
