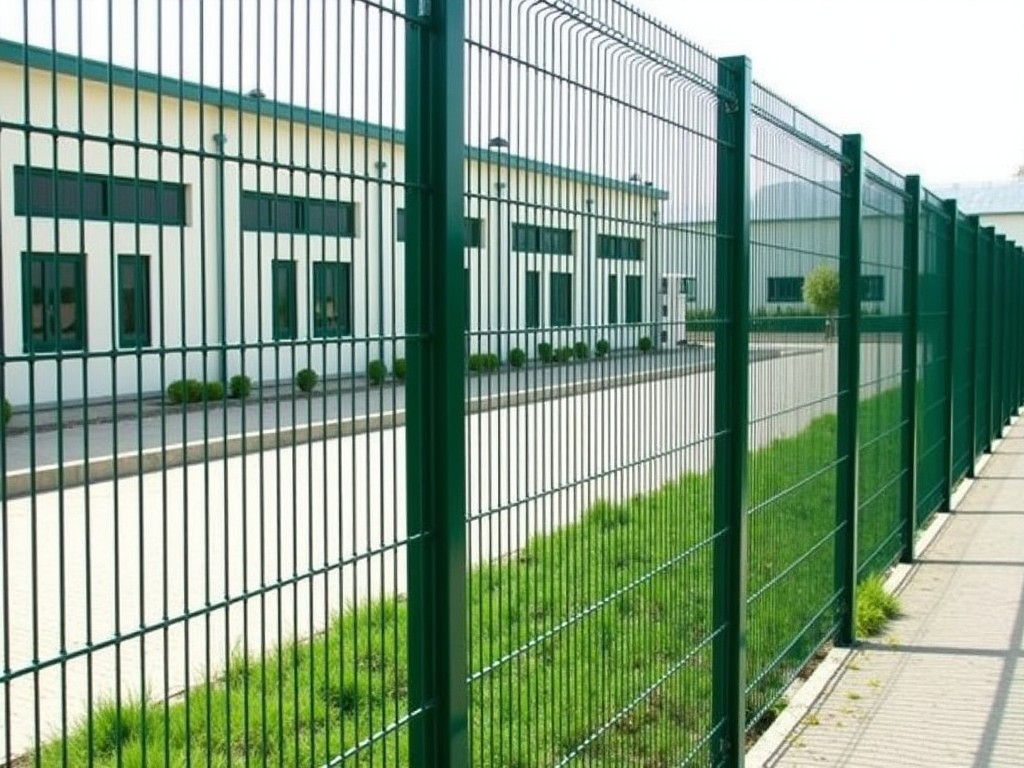

Best Price Pvc Coated Wire Mesh Fencing Exporter
PVC coated wire mesh fencing consists of a core steel wire that is uniformly extruded with a polyvinyl chloride layer. The coating provides a barrier against moisture, chemicals, and UV exposure,
Request a QuotePVC Coated Wire Mesh Fencing – Export Grade
PVC coated wire mesh fencing consists of a core steel wire that is uniformly extruded with a polyvinyl chloride layer. The coating provides a barrier against moisture, chemicals, and UV exposure, extending service life in outdoor environments while maintaining flexibility for installation.
Key Technical Parameters
Engineers evaluate the fence based on measurable attributes that directly affect performance and longevity. Typical ranges are presented below to aid in specification matching.
| Property | Typical Value | Unit |
|---|---|---|
| Wire Diameter | 1.2 – 3.0 | mm |
| Mesh Opening (Square) | 25 – 150 | mm |
| PVC Coating Thickness | 0.3 – 0.8 | mm |
| Tensile Strength of Core Wire | 350 – 550 | MPa |
| Weight per Square Meter | 0.8 – 2.5 | kg/m² |
| Roll Width | 0.5 – 2.0 | m |
| Roll Length | 10 – 50 | m |
Typical Applications
In agricultural enclosures, the fence contains livestock while resisting corrosion from fertilizers and animal waste. For construction site perimeters, the visible mesh deters unauthorized access and the coating withstands splashes of concrete additives. Sports facilities use it for ball containment because the opening size can be selected to stop specific equipment dimensions without obstructing sight lines.
Quality Assurance Practices
Manufacturing consistency is verified through multiple checkpoints. Incoming steel rod is sampled for tensile and elongation properties. During extrusion, coating thickness is monitored with laser gauges at 1‑meter intervals. Finished rolls undergo adhesion testing per ASTM D4541, and a random selection is subjected to a 500‑hour salt‑spray exposure to confirm corrosion resistance.
Customization Options
Buyers can specify several variables to match project constraints. The following list details the most commonly adjusted parameters.
- Wire diameter: 1.2 mm to 3.0 mm in 0.1 mm increments
- Mesh opening: square or rectangular, 25 mm to 150 mm
- PVC coating thickness: 0.3 mm to 0.8 mm
- Roll width: 0.5 m to 2.0 m
- Roll length: 10 m to 50 m (custom lengths available)
- Color: standard green, black, grey, or custom RAL
- Additives: UV stabilizer, anti‑fungicide, or flame retardant on request
Packaging and Shipment Preparation
Finished rolls are prepared for long‑distance transport to preserve coating integrity. The steps below outline the standard export procedure.
- Each roll is wrapped in stretch‑film to prevent surface abrasion
- Rolls are placed on pallets with corner protectors to avoid edge damage
- A moisture‑barrier sheet is added between layers for humid climates
- Pallets are secured with poly‑strap and loaded into 20‑ft or 40‑ft containers
- Container loading includes ventilation strips to reduce condensation
Frequently Asked Questions
Can dimensions be customized?
Yes, wire diameter, mesh opening, coating thickness, roll width, and length can be adjusted according to project drawings. Please provide the required specifications when requesting a quotation.
What information is needed for a quote?
To generate an accurate price, we need the intended mesh size, wire gauge, coating thickness, roll dimensions, color preference, and order quantity. Delivery destination and any required certifications (e.g., ISO 9001, CE) also affect lead time and cost.
How are samples arranged?
Sample rolls of up to 5 m length can be dispatched via express courier. The customer covers shipping fees, and the sample cost is credited against the first official order.
Next Steps
For technical quotations, sample requests, or to discuss specific project requirements, please reach out using the contact link below. Our engineering team will review your specifications and provide a detailed response within one business day.
