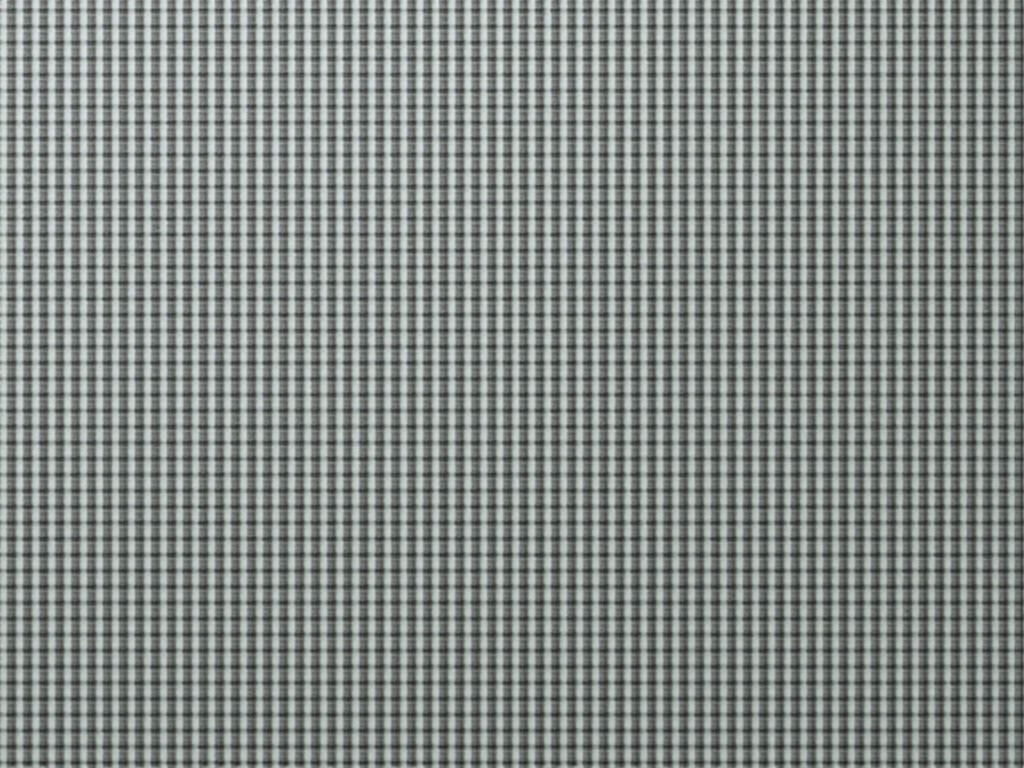

China ODM Welded Wire Mesh Factory Price

Welded wire mesh is produced by arranging parallel longitudinal and transverse wires at right angles and fusing them at each intersection through resistance welding. This process creates a uniform grid with consistent opening dimensions and wire spacing, which directly influences load distribution and structural performance.

Technical Specifications

Standard mesh is manufactured from low-carbon steel wire, optionally galvanized or PVC-coated for corrosion protection. Wire diameters typically range from 0.8 mm to 5.0 mm, while square or rectangular openings vary from 10 mm × 10 mm up to 150 mm × 150 mm. Sheet dimensions are commonly supplied in widths of 0.5 m to 2.4 m and lengths of 1.0 m to 6.0 m, customizable to project requirements.

Applications

The structural integrity and open area of welded wire mesh make it suitable for load‑bearing and filtration roles across multiple sectors.

• Concrete reinforcement: used as slab on grade, wall panels, and precast elements where crack control and tensile support are required.
• Infrastructure fencing: provides perimeter security for highways, railways, and utility corridors with visibility and climb resistance.
• Industrial partitioning: creates machine guards, storage cages, and safety barriers that withstand impact and allow ventilation.
• Agricultural containment: forms poultry cages, rabbit hutches, and vineyard trellis systems with corrosion‑resistant finishes.
• Filtration and screening: serves as media for liquid/solid separation in mining, wastewater treatment, and food processing due to uniform aperture.

Customization Options

Manufacturers adjust wire gauge, opening geometry, sheet dimensions, and surface treatment to align with design specifications and installation constraints.

• Wire material: plain steel, hot‑dip galvanized, electro‑galvanized, or stainless steel (grades 304/316) for aggressive environments.
• Opening shape: square, rectangular, or custom patterns such as hexagonal or offset grids to meet flow or grip requirements.
• Edge finishing: trimmed, rolled, or fringed edges to facilitate handling, fastening, or welding to frames.
• Sheet size: custom widths and lengths to reduce on‑site cutting and minimize waste.
• Coating color: PVC or powder coating available in RAL standards for aesthetic or coding purposes.

Quality Control

Each production batch undergoes dimensional verification, weld strength testing, and coating adhesion checks to ensure conformity with order specifications and relevant standards.

• Opening tolerance: ±10 % of nominal dimension measured across multiple points per sheet.
• Wire diameter tolerance: ±0.05 mm verified with micrometer sampling.
• Weld shear strength: minimum 90 % of parent wire tensile strength tested per ISO 9044.
• Coating thickness: measured with magnetic or eddy‑current gauges; zinc coating mass verified via weigh‑off method.

Packaging & Shipping

Finished mesh is typically stacked, interleaved with protective paper, and secured with steel or plastic strapping. Palletized units are stretch‑wrapped and fitted with corner guards to prevent deformation during transit.

• Standard pallet size: 1.1 m × 1.1 m, height adjustable based on sheet thickness and quantity.
• Water‑resistant barrier: optional polyethylene sheeting for overseas shipments.
• Loading options: containerized, flatbed, or break‑bulk according to destination infrastructure.

Get a Quote

To receive a detailed price estimate, provide the required wire diameter, opening size, sheet dimensions, material grade, coating type, and order quantity. Our engineering team will review the specifications and return a formal quotation within two business days.

For technical assistance or to request a sample, contact us.
