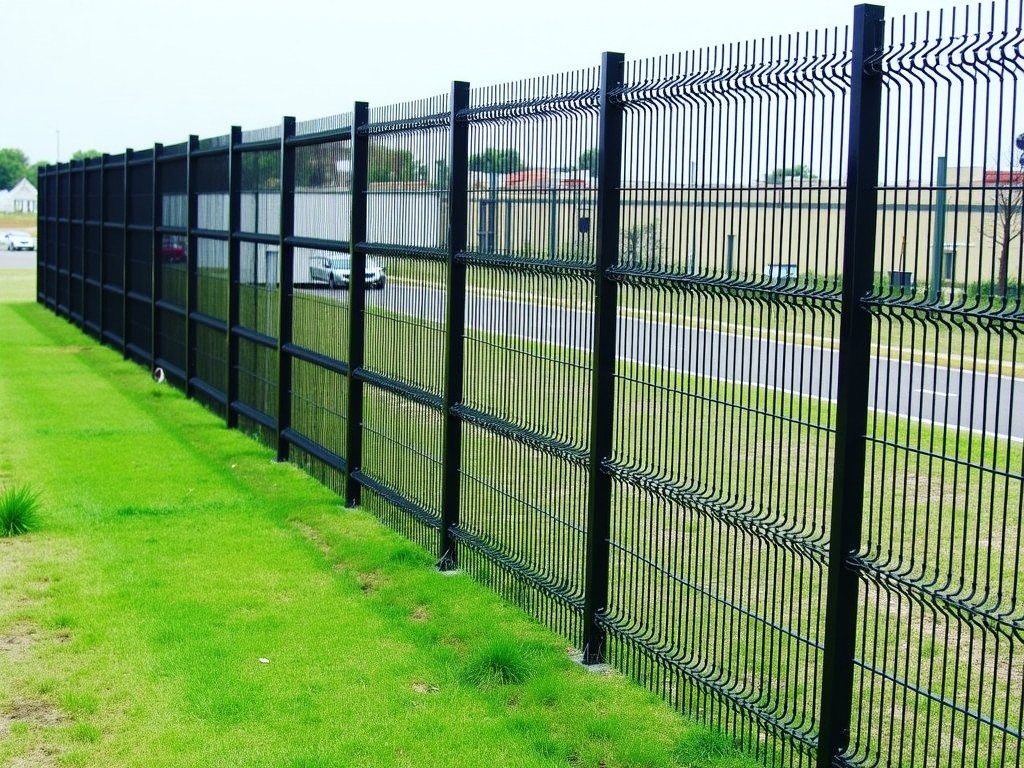

Custom Anti Climb Clearview Security Fence Panels Supplier
Anti-climb clearview fence panels combine a tight mesh aperture with angled top rails to deter scaling while maintaining visibility. The design prevents hand and foot holds by limiting opening size
Request a QuoteCustom Anti-Climb Clearview Security Fence Panels
Anti-climb clearview fence panels combine a tight mesh aperture with angled top rails to deter scaling while maintaining visibility.
The design prevents hand and foot holds by limiting opening size to less than 12 mm and incorporating a 45° overhang that forces any climbing attempt to slip.
Design & Engineering
Panel geometry is derived from finite‑element analysis of load distribution under impact and wind loads, ensuring rigidity without excessive material use.
Vertical wires are welded at each intersection to a horizontal reinforcement bar, creating a grid that resists deformation when subjected to dynamic forces.
- Mesh aperture options: 12 mm × 12 mm, 18 mm × 18 mm, 25 mm × 25 mm.
- Top rail angle: 30° to 60° from vertical, customizable per site risk assessment.
- Post spacing: typically 2.5 m to 3.0 m, adjustable for terrain.
Material Options
Core wire is cold‑drawn low‑carbon steel, galvanized to a minimum coating weight of 275 g/m² for corrosion resistance in outdoor environments.
For aggressive atmospheres, a zinc‑aluminum alloy coating (ZA) or a powder‑coated finish in RAL colors can be specified.
- Base steel grade: FeE 280 ± 20 MPa tensile strength.
- Galvanization: hot‑dip Zn, Zn‑5%Al, or Zn‑15%Al alloy.
- Optional powder coat: epoxy‑polyester, thickness 80 µm, UV‑stabilized.
Performance Characteristics
Panels are tested to resist a dynamic impact of 150 J without permanent deformation, simulating a forced entry attempt.
Wind load capacity reaches 2.4 kN/m² for a 2.1 m high panel with standard post spacing, suitable for most perimeter applications.
| Parameter | Typical Value | Test Standard |
|---|---|---|
| Mesh aperture | 12 mm × 12 mm (standard) | EN 10223‑3 |
| Tensile strength of wire | 550 MPa (min) | ISO 6892‑1 |
| Coating adhesion | >5 MPa (peel) | ASTM D3359 |
| Wind load resistance | 2.4 kN/m² | ASCE 7‑16 |
Applications
The clearview design is chosen for sites where visual surveillance must remain unobstructed, such as airport perimeters, data‑center compounds, and high‑value storage facilities.
Angled top rails eliminate handholds while allowing CCTV cameras to capture activity behind the fence without glare or shadow distortion.
In correctional environments, the small aperture prevents contraband transfer, and the galvanized coating withstands frequent cleaning with alkaline solutions.
Customization Options
Panel height, mesh size, top‑rail angle, and coating type are adjusted per project risk matrix and architectural constraints.
- Height range: 1.2 m to 3.0 m in 150 mm increments.
- Mesh aperture: customizable from 8 mm to 30 mm square.
- Post options: square, round, or I‑section, with base plates for concrete mounting.
- Finish: galvanized only, galvanized + powder coat, or stainless‑steel cladding for marine zones.
Quality Assurance
Each production lot undergoes dimensional verification using laser‑scanned profiles to ensure aperture uniformity within ±0.5 mm.
Coating thickness is measured by magnetic induction on ten random spots per panel, with acceptance criteria aligned to ISO 1461.
Final inspection includes a 30‑second impact test with a 5 kg pendulum to confirm energy absorption without fracture.
Comparison: Standard vs. Custom Panels
| Feature | Standard Panel | Custom Panel |
|---|---|---|
| Height | 2.1 m | 1.2 m – 3.0 m (specified) |
| Mesh aperture | 12 mm × 12 mm | 8 mm – 30 mm (specified) |
| Top‑rail angle | 45° | 30° – 60° (specified) |
| Coating | Hot‑dip Zn 275 g/m² | Zn‑Al alloy, powder coat, or stainless |
Frequently Asked Questions
Can dimensions be customized? Yes, panel height, width, mesh size, and post spacing are adjusted per project drawings.
What information is required before quotation? Site layout, required height, mesh aperture, coating preference, and any specific load or impact criteria.
What materials are available? Cold‑drawn steel with hot‑dip galvanizing, zinc‑aluminum alloy coating, or optional powder‑coat finishes in RAL colors.
How is quality inspected? Dimensional laser scan, coating thickness measurement, adhesion testing, and impact resistance verification.
What packaging methods are available? Panels are bundled with protective edge guards, placed on pallets, and wrapped in UV‑stabilized stretch film for export.
How are export shipments protected? Corner protectors, moisture‑barrier liners, and steel strapping comply with ISPM‑15 wood‑free packaging standards.
What is the typical production lead time? 4‑6 weeks after drawing approval, depending on order volume and coating selection.
How are samples arranged? Sample panels (up to 1 m²) can be shipped via express courier; costs are credited against the first order.
Get a Technical Quote
Provide your project specifications, and our engineering team will return a detailed quotation with lead times, packaging options, and compliance documentation.
