The factory produces fencing panels that are engineered to match the exact perimeter, height, and load criteria of sports venues such as soccer fields, baseball diamonds, and tennis complexes.
Product Overview
Each panel consists of a rectangular steel frame with infill options that include welded wire mesh, vertical bars, or perforated sheet. The frame depth is typically 50 mm, allowing for easy installation with standard post brackets.
Material Options
- Hot‑dip galvanized steel (Zn coating 275 g/m²) for corrosion resistance in humid climates.
- Pre‑galvanized steel with additional powder‑coat finish (polyester, thickness 80 µm) for color customization.
- Stainless steel grade 304 or 316 for coastal installations where chloride exposure is high.
- Aluminum alloy 6063‑T5 for lightweight panels where manual handling is a priority.
Design & Customization
Panels are produced to the exact length required by the field perimeter, eliminating the need for on‑site cutting.
- Height adjustable from 1.2 m to 3.0 m in 10 mm increments.
- Width per module typically 2.4 m, but可定制 to match post spacing.
- Infill patterns: square mesh 50 mm × 50 mm, rectangular mesh 75 mm × 25 mm, vertical bar spacing 100 mm.
- Surface treatments: hot‑dip galvanizing, powder coating (RAL colors), anodizing for aluminum.
- Optional features: integrated tension wires, anti‑climb spikes, and gate frames with matching infill.
Manufacturing Process
Cut-to-length steel coils are fed through a roll‑forming line that creates the frame profile with precise tolerances (±0.5 mm).
Infill is attached by automated welding or mechanical fastening, followed by cleaning, pretreatment, and coating application in a controlled environment.
Quality Assurance
- Dimensional inspection using laser gauges to verify height, width, and squareness.
- Coating thickness measured with magnetic induction gauges; target Zn ≥275 g/m² or powder coat ≥80 µm.
- Weld strength tested by pull‑off tests on a sample batch (≥1.5 kN per weld).
- Visual inspection for surface defects under standardized lighting (500 lux).
Applications in Sports Facilities

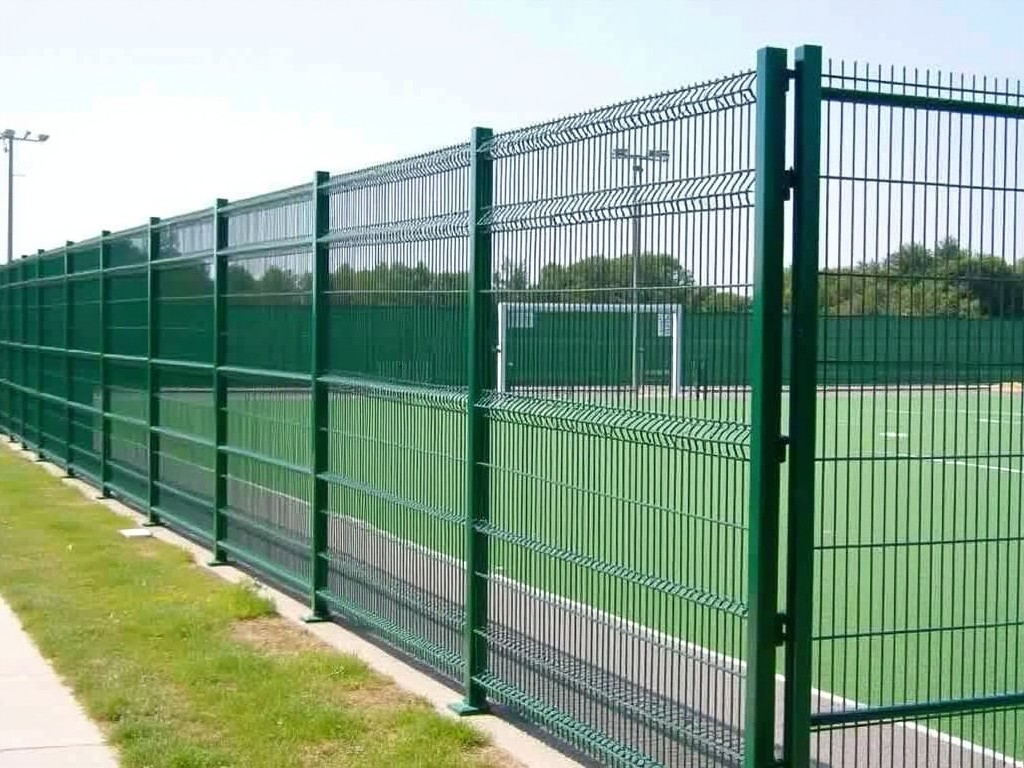

Sports field fencing must contain balls, protect spectators, and withstand repeated impact from play equipment.
The panels provide a continuous barrier with minimal deflection, reducing the chance of ball rebound into spectator areas. Their modular design allows rapid replacement of damaged sections without disrupting the entire perimeter.
Typical Technical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Frame material thickness | 2.0 mm – 3.0 mm | Selected based on load requirements |
| Panel height range | 1.2 m – 3.0 m | Custom increments available |
| Panel width (module) | 2.4 m (standard) | Adjustable to match post spacing |
| Infill opening size | 25 mm × 25 mm to 75 mm × 25 mm | Mesh or bar options |
| Coating type | Hot‑dip galvanized (Zn 275 g/m²) or powder coat (80 µm) | Optional stainless or aluminum |
| Wind load resistance | Up to 150 km/h (customizable) | Dependent on height and post embedment |
Frequently Asked Questions
- Can panel dimensions be customized? – Yes, length, height, and width are produced to match the exact field layout.
- What information is required for a quotation? – Required details include total perimeter length, desired height, infill type, coating preference, and any special features such as gates.
- Which materials are available? – Hot‑dip galvanized steel, pre‑galvanized steel with powder coat, stainless steel grades 304/316, and aluminum alloy 6063‑T5.
- How is quality inspected? – Each batch undergoes dimensional checks, coating thickness measurement, weld strength testing, and visual inspection.
- What packaging methods are used? – Panels are stacked on pallets with protective corner guards and wrapped in stretch film for transport.
- How are export shipments protected? – Pallets are placed in sealed containers with desiccant packs to prevent moisture ingress.
- What is the typical production lead time? – Lead time ranges from 3 to 6 weeks depending on order volume and customization complexity.
- How can samples be arranged? – Sample sections (up to 1 m²) can be shipped upon request; freight costs are borne by the requester.
Get a Quote
To discuss your project requirements, provide the field dimensions, desired fence height, and any specific coating or infill preferences.
