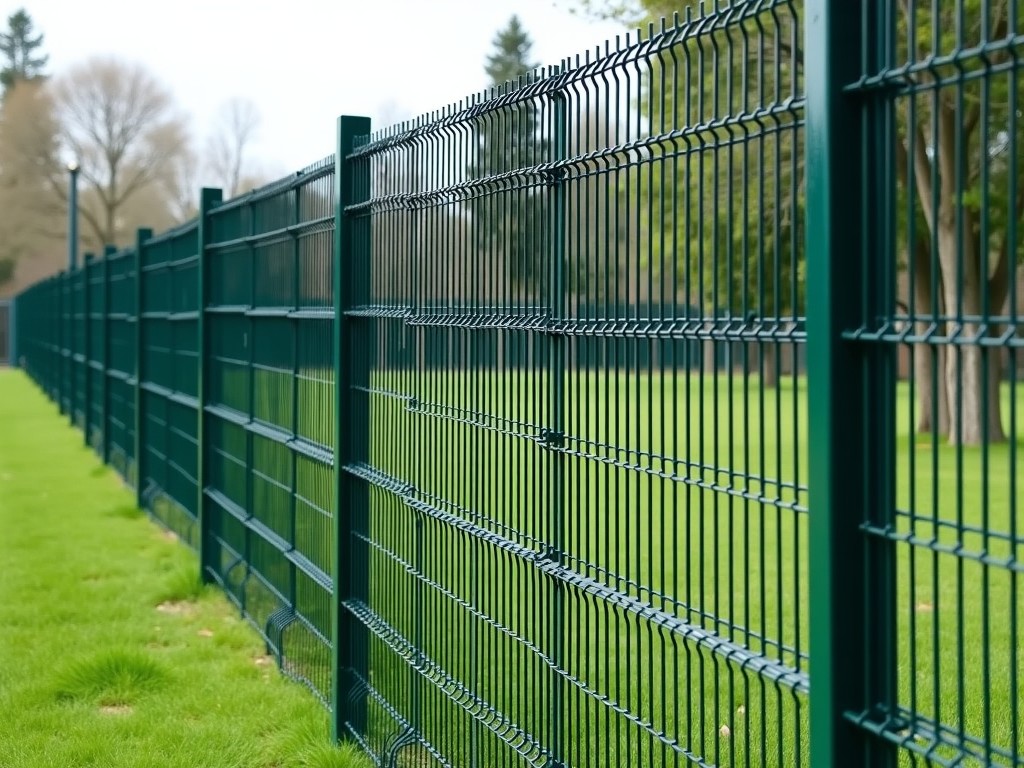

Custom Garden Steel Metal Net Security Mesh Fence Factory
This product consists of steel wires arranged in a regular grid pattern and joined at intersections by either welding or weaving, forming a continuous mesh panel. The open aperture design provides
Request a QuoteCustom Garden Steel Metal Net Security Mesh Fence
Product Overview
This product consists of steel wires arranged in a regular grid pattern and joined at intersections by either welding or weaving, forming a continuous mesh panel.
The open aperture design provides clear sight lines while preventing unauthorized entry, allowing light and air to pass through, which reduces wind load and minimizes visual obstruction in garden settings.
Technical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Material | Low carbon steel (Q195/Q235) | Available in galvanized or PVC‑coated finishes |
| Wire Diameter | 1.2 mm – 3.0 mm | Selected per load requirement |
| Aperture Size | 25 mm × 25 mm to 100 mm × 100 mm | Customizable according to project requirements |
| Panel Height | 0.8 m – 2.5 m | Standard heights; custom lengths available |
| Roll Length | 10 m – 50 m per roll | Length adjusted to handling constraints |
| Tensile Strength | ≥ 350 MPa (wire) | Measured per ASTM A370 |
| Coating Type | Hot‑dip galvanized (Zn≥55 g/m²) or PVC (thickness 0.2 mm – 0.5 mm) | Optional powder coating on request |
| Corrosion Resistance | ≥ 500 h salt spray (galvanized) | PVC coating adds UV stability |
| Weight per Meter | 0.8 kg/m – 3.5 kg/m (depends on wire dia & coating) | Calculated for standard 50 mm aperture |
Applications
- Residential garden perimeter – the 25 mm × 25 mm aperture offers roughly 78% open area, enabling clear sight of landscaping while presenting a physical barrier that delays intrusion attempts.
- Commercial property security – panels with 3.0 mm wire and hot‑dip galvanized coating achieve tensile strength ≥ 350 MPa, providing resistance to cutting tools and maintaining structural integrity under repeated impact.
- Agricultural enclosure – PVC‑coated mesh with 0.3 mm coating thickness resists agro‑chemical exposure and UV degradation, allowing safe containment of livestock without corrosion‑related failure.
- Public park & recreational area – the mesh’s low weight (≈1.2 kg/m for 2.0 mm wire) simplifies installation on existing posts, and the open design limits wind uplift, reducing fastener load by approximately 25% compared to solid fencing.
Customization Options
- Wire diameter – selectable from 1.2 mm to 3.0 mm in 0.2 mm increments to match required tensile strength and impact resistance.
- Aperture size – adjustable from 15 mm × 15 mm to 150 mm × 150 mm, allowing trade‑off between visibility and small‑animal exclusion.
- Panel height – available in 0.5 m increments from 0.6 m to 3.0 m; custom lengths can be fabricated to suit site‑specific topographies.
- Roll length – standard rolls 10 m, 20 m, 30 m, 50 m; lengths can be spliced on‑site with approved connectors.
- Coating – hot‑dip galvanized (Zn≥55 g/m²), PVC (0.2 mm–0.5 mm), or powder coating (RAL colors) for enhanced aesthetics and UV stability.
- Edge finish – knuckle, twisted, or barbed edges to deter climbing and reduce snagging hazards.
- Post compatibility – designed for round steel posts (Ø48 mm), square posts (50 mm×50 mm), or concrete‑set posts with pre‑drilled mounting holes.
- Gate integration – matching mesh panels can be supplied with hinges, lockable latches, and optional automation brackets.
Quality Control & Testing
Incoming steel wire is verified for chemical composition (C≤0.12%, Mn≤0.60%) and mechanical properties, with tensile samples tested to confirm yield strength ≥ 250 MPa before any forming operation.
During production, each weld point is examined for penetration depth (≥ 0.8 mm) and aperture dimensions are measured with laser gauges to maintain tolerance ± 0.5 mm; finished rolls undergo a 500‑hour neutral salt spray test (ASTM B117) and a 30 J impact test to ensure coating adhesion and mesh integrity under service loads.
Packaging & Shipping
- Rolls are wrapped in UV‑stabilized stretch film and placed on pallets with corner protectors, securing the load with polyester straps rated ≥ 2 t.
- For longer distances, pallets are loaded into 20‑ft or 40‑ft containers using block‑stacking to minimize movement; each container is fitted with desiccant bags to control humidity below 50 % RH.
- Optional wooden crates are available for high‑value projects, providing additional impact protection with internal foam padding and external ISPM‑15 treatment.
- All shipments include a packing list, material test certificate, and installation guide, enabling quick verification at the destination.
Frequently Asked Questions
Q: Can the mesh dimensions be customized to match existing fence posts?
A: Yes. Panel height, aperture size, and wire diameter are adjusted per drawing; mounting holes can be punched or drilled to align with standard post centers (typically 2.0 m spacing).
Q: What information is required before a quotation can be issued?
A: Required data include desired height, length, wire diameter, aperture, coating type, edge finish, and any special accessories such as posts, gates, or tension wires.
Q: Which materials are available for the mesh?
A: Base material is low carbon steel (Q195/Q235) with optional hot‑dip galvanized, PVC, or powder coating; stainless steel grades (304, 316) can be supplied upon request for corrosive environments.
Q: How is quality inspected before shipment?
A: Each batch undergoes dimensional verification, coating thickness measurement (μm), tensile strength testing of wire samples, and a 500‑hour salt spray test; results are documented in the material test certificate.
Q: What is the typical production lead time?
A: Lead time varies with order size and coating selection; standard galvanized mesh usually ships within 10‑15 working days after drawing approval, while PVC or powder coating adds 5‑7 days.
Get a Quote
To discuss your specific requirements, please provide project details and our technical team will return a detailed quotation and lead‑time estimate.
