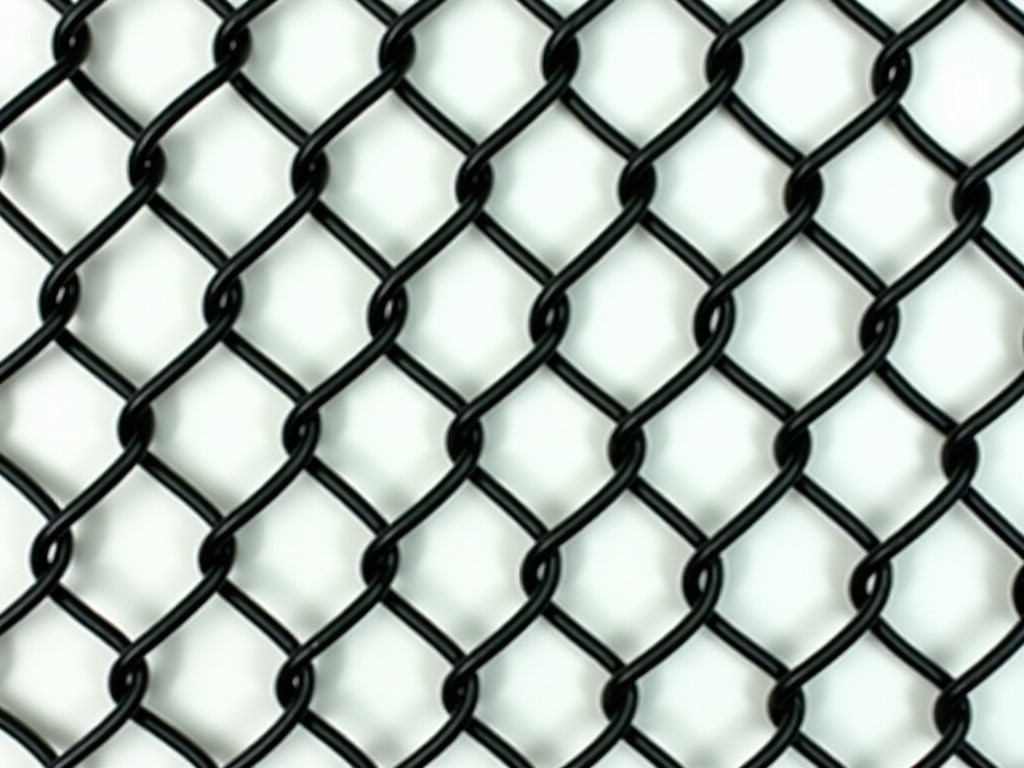

Custom Black PVC Coated Chain Link Fence

The black PVC coating provides a durable barrier against corrosion while delivering a uniform appearance suitable for security perimeters, recreational facilities, and industrial sites.

Material Composition

Base wire is low‑carbon steel that undergoes hot‑dip galvanizing to achieve a minimum zinc coating of 60 g/m² before polymer application.

The PVC layer is formulated with UV stabilizers and a carbon‑black pigment, resulting in a coating thickness typically ranging from 0.3 mm to 0.5 mm per side.

Coating Specifications

Adhesion between the galvanized substrate and PVC exceeds 2.5 MPa, measured per ASTM D4541, ensuring the coating remains intact under impact and flexing.

Hardness of the cured PVC falls between 80 and 90 Shore A, providing resistance to abrasion while maintaining flexibility for installation.

The formulation includes anti‑fungal additives to prevent mildew growth in humid environments.

Dimensional Options

Wire gauge selections range from 6 ga (4.9 mm) to 9 ga (3.8 mm) diameter, influencing tensile strength and mesh rigidity.

Standard mesh openings are 50 mm × 50 mm, with optional sizes of 38 mm × 38 mm for higher security or 75 mm × 75 mm for reduced material cost.

Roll heights are available from 0.9 m to 3.0 m, and lengths can be customized up to 50 m per roll to suit site‑specific layout requirements.

Customization Choices

• Coating color: black (standard), dark green, or custom RAL matches upon request.
• Height: specify exact panel height; extensions achievable with overlapping rolls.
• Mesh size: adjust opening dimensions to control visibility and climb resistance.
• Selvage options: knuckle‑top for safety, twisted‑top for added rigidity, or barbed‑top for high‑security zones.
• Bottom tension: integrate a galvanized tension wire or concrete curb for enhanced stability.

Manufacturing Process

Wire is drawn to the target gauge, then cleaned and passed through a hot‑dip galvanizing line to achieve the prescribed zinc coating.

The galvanized wire proceeds to a PVC extrusion station where the molten polymer is applied uniformly via a die‑coating method, followed by immediate water quenching to set thickness.

Coated wires are woven on a pneumatic loom into the selected mesh pattern, then wound onto rolls with interleaving protective film to prevent surface damage during transit.

Quality Assurance

Inline laser gauges monitor PVC thickness every 2 m, triggering automatic adjustments if deviation exceeds ±0.02 mm.

Adhesion testing is performed on each production batch using a pull‑off gauge; results below 2.0 MPa cause line stoppage for investigation.

Impact resistance is verified by dropping a 2 kg steel ball from 1 m height onto a sample; no cracking or delamination is accepted.

Accelerated UV exposure (1000 h) per ASTM G154 confirms color stability with ΔE < 5 after testing.

Typical Applications

In sports complexes, the black PVC coating reduces glare under floodlights, improving visibility for players and spectators while providing a non‑reflective boundary.

Industrial facilities benefit from the coating’s resistance to chemical splashes and UV degradation, extending service life in outdoor storage yards.

Municipal security perimeters select the black finish for its low‑visibility aesthetic, deterring unauthorized access without the visual starkness of bare galvanized steel.

Comparison with Alternative Finishes

Frequently Asked Questions

• Can dimensions be customized? Yes, wire gauge, mesh opening, roll height, and length are all adjustable to project specifications.
• What information is required before quotation? Required details include desired height, total linear footage, mesh size, coating color, and any special selvage or bottom tension requirements.
• What materials are available for the base wire? Standard is low‑carbon steel with hot‑dip galvanizing; stainless steel core is offered upon request for extreme corrosion environments.
• How is quality inspected? Inline thickness gauges, adhesion pull‑off tests, impact drop tests, and UV aging checks are performed on each batch.
• What packaging methods are available? Rolls are wrapped in UV‑stable polyethylene film, placed on pallets, and secured with corner protectors; custom crating is available for overseas shipments.
• How are export shipments protected? Pallets are fumigated if required, covered with waterproof tarps, and fastened with steel straps to withstand container handling.
• What is the typical production lead time? Lead time ranges from 10 to 25 working days depending on order complexity and current plant load.
• How are samples arranged? Sample sections up to 2 m × 2 m can be shipped via express courier; charges are credited against a subsequent order.

Ready to Discuss Your Project?

Provide your project specifications and we will return a detailed quotation with lead time, packaging options, and compliance documentation.
