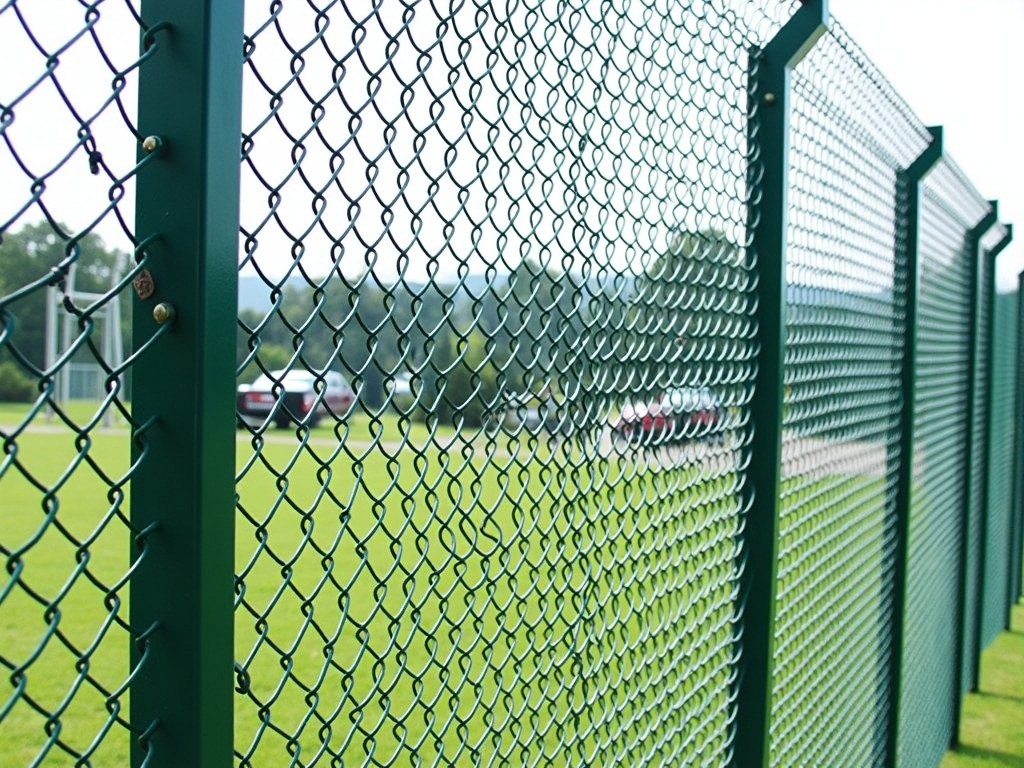

Heavy Duty Chain Link Fence Panels – Supplier from China

Heavy duty chain link fence panels are fabricated from high-tensile steel wire woven into a uniform mesh and tensioned between line posts. They provide a durable barrier that resists impact, corrosion, and wind load while maintaining visibility.

Technical Specifications

Key performance parameters include wire diameter, mesh opening, tensile strength of the wire, and coating thickness. These values determine the panel’s resistance to deformation, cutting, and environmental degradation.

Material Options and Coatings

The base wire is typically low-carbon steel with a minimum yield strength of 350 MPa. Protective coatings are applied to extend service life in outdoor environments.

• Hot-dip galvanized zinc coating (200–300 µm) for standard corrosion resistance.
• Zinc‑aluminum alloy coating (Zn‑5Al‑MM) offering enhanced durability in coastal areas.
• PVC over‑coat (0.5 mm thickness) available in green, black, or brown for aesthetic blending.
• Powder‑coated polyester finish (80 µm) for UV‑stable color retention.

Structural Design and Performance

Panel rigidity depends on mesh tension, wire diameter, and the spacing of supporting posts. Proper engineering limits deflection under wind pressure and impact loads.

Typical Applications

Heavy duty chain link panels are selected where a balance of strength, visibility, and cost‑effectiveness is required. Their open mesh allows surveillance while deterring unauthorized entry.

• Industrial facility perimeters – provides clear line‑of‑sight for CCTV and deters climbing due to small mesh size.
• Storage yards and logistics centers – withstands frequent forklift impacts and resists deformation under stacked loads.
• Airport ground‑side security – meets ICAO fence height and penetration resistance standards.
• Sports complexes and school grounds – offers durability against ball impact while maintaining spectator visibility.
• Agricultural enclosures – resists animal pressure and corrosion from fertilizers.

Customization Capabilities

Panels can be tailored to specific project dimensions, mesh patterns, and accessory requirements. Adjustments are made during the welding and tensioning stages to maintain structural integrity.

• Custom heights from 1.0 m to 4.0 m in 0.1 m increments.
• Mesh openings ranging from 25 mm to 100 mm square or rectangular.
• Alternative wire diameters (2.0 mm to 6.0 mm) for load‑specific designs.
• Integrated barbed wire, razor tape, or privacy slats installed during manufacturing.
• Pre‑drilled post holes and fastening brackets for rapid field assembly.

Quality Control and Testing

Each production batch undergoes systematic verification to ensure conformance with mechanical and coating specifications. Traceability is maintained from raw material receipt to final shipment.

• Wire tensile strength tested per ASTM A370 on every coil.
• Mesh opening dimensions verified with calibrated gauges (±0.5 mm tolerance).
• Coating thickness measured by magnetic induction (ISO 1460).
• Adhesion of PVC/polyester coating assessed via cross‑hatch test (ASTM D3359).
• Finished panels subjected to a 50 kg impact test to confirm resistance to permanent deformation.

Packaging and Logistics

Panels are bundled and protected to prevent damage during transit and storage. Packaging methods are selected based on order volume and destination handling conditions.

• Panels stacked flat, separated by corrugated cardboard sheets, and secured with steel straps.
• Each bundle wrapped in UV‑stabilized polyethylene film to guard against moisture.
• Standard pallet size 1.1 m × 1.1 m, height adjustable up to 2.0 m.
• Corner protectors and edge guards added for high‑impact handling environments.
• Container loading optimized for 20‑ft and 40‑ft shipments, with detailed packing lists provided.

Frequently Asked Questions

Contact Us for Technical Consultation

Our engineering team can review your site conditions, recommend appropriate specifications, and provide detailed drawings. Reach out to begin a no‑obligation assessment.
