B2B Black Vinyl Coated Chain Link Fence Supplier

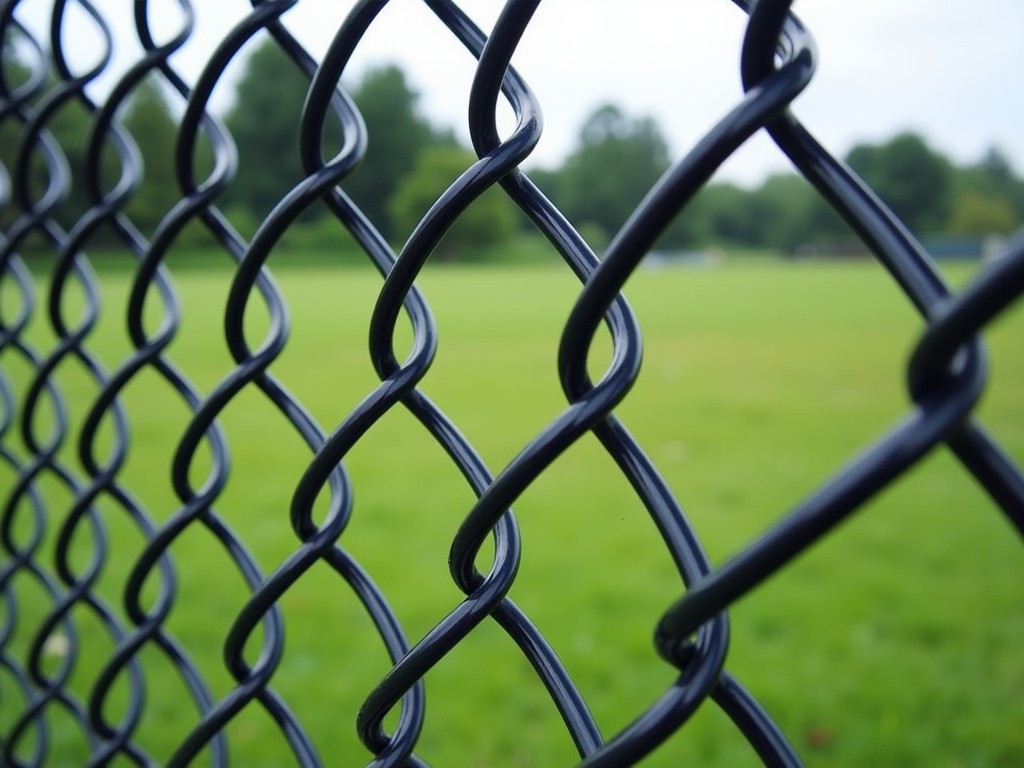

Black vinyl coated chain link fence consists of a galvanized steel wire core extruded with a flexible polyvinyl chloride (PVC) coating. The coating provides a continuous barrier that isolates the steel from moisture, chemicals, and UV exposure.

Typical coating thickness ranges from 0.30 mm to 0.45 mm measured on the wire diameter, achieving adhesion strength of at least 2.5 N/mm² per ASTM D4541. The base wire is usually 2.0 mm to 3.5 mm diameter, galvanized to a minimum zinc coating of 200 g/m².

For procurement engineers, the primary value lies in predictable service life and reduced maintenance cycles, which translate to lower total cost of ownership compared with bare galvanized or painted alternatives in corrosive environments.

Material Composition

The steel core undergoes hot-dip galvanizing before extrusion, ensuring zinc-iron alloy layers that inhibit underfilm corrosion. The PVC compound incorporates UV stabilizers, plasticizers, and pigments to maintain flexibility and color fastness over a temperature range of –30 °C to +60 °C.

Additives such as calcium-zinc stabilizers replace lead-based systems, meeting RoHS and REACH requirements for industrial fencing applications. The resulting composite exhibits a tensile strength comparable to the base wire, typically 450 MPa to 550 MPa depending on wire grade.

Vinyl Coating Process

Extrusion is performed using a cross‑head die that surrounds the moving wire with molten PVC, followed by immediate water quenching to set the coating thickness. Line speeds are controlled to ensure uniform coverage without thin spots or pinholes.

Post‑extrusion, the coated wire passes through a cooling tunnel and undergoes online spark testing to detect holidays. Any detected defects trigger automatic rejection, maintaining a coating continuity target of >99.5 % per ASTM G62.

Dimensional Specifications

Mechanical Properties

• Tensile strength of coated wire: 450 MPa – 550 MPa (core dependent)
• Elongation at break: ≥12 % (ASTM F668)
• Impact resistance (Charpy V‑notch): ≥20 J at –20 °C
• Coating adhesion (peel test): ≥2.5 N/mm²

Applications

Industrial facilities select black vinyl coated chain link for perimeter security where visual consistency matters, such as data centers, logistics hubs, and manufacturing plants. The uniform dark finish reduces glare and blends with surrounding architecture, lowering visual intrusion in sensitive sites.

In environments with chemical exposure—e.g., fertilizer storage, wastewater treatment, or coastal zones—the PVC coating acts as a sacrificial layer that prevents chloride ingress, extending service life beyond that of standard galvanized fence by an estimated 15–25 years under comparable conditions.

Quality Assurance

Each production lot undergoes dimensional verification using laser micrometers, coating thickness measurement via magnetic induction, and visual inspection under standardized lighting. Mechanical tests are performed on samples taken from the beginning, middle, and end of each extrusion batch.

Documentation includes material certificates, coating thickness reports, and test results compliant with ISO 9001 and ASTM standards. Traceability is maintained through lot numbers etched on the core wire or printed on the packaging label.

Customization Options

• Wire diameter and tensile grade adjusted to load specifications
• Coating color options: black, dark green, brown, or custom RAL matches
• Mesh opening sizes from 25 mm to 100 mm square or rectangular
• Selvedge variations: knuckle, twist, or barbed edge
• Height extensions with overlapping or welded connections

Packaging & Shipping

Finished rolls are wrapped in UV‑stabilized polyethylene film, placed on wooden pallets, and secured with steel strapping. Pallet dimensions conform to ISO 6780 for efficient container loading. Each pallet carries a maximum net weight of 2 000 kg to facilitate safe handling with standard forklift equipment.

For export shipments, desiccant packets and corner protectors are added to mitigate moisture ingress during transit. Loading instructions and handling labels are affixed to each pallet according to ISTA 3A standards.

FAQ

Can dimensions be customized?

Yes. Wire diameter, coating thickness, mesh aperture, and roll height are all adjustable per project requirements. Provide design loads and site constraints for a precise quotation.

What information is required before quotation?

Required details include fence height, length, post spacing, gate specifications, environmental exposure (e.g., salinity, pH), and any applicable local codes or standards.

What materials are available?

Base wire options: hot‑dip galvanized steel, stainless steel (grades 304/316), or aluminum alloy. Coating materials: PVC, PE, or PP with various color pigments and stabilizer packages.

How is quality inspected?

In‑process checks cover wire diameter, coating thickness, adhesion, and visual appearance. Final lot testing includes tensile strength, elongation, impact resistance, and coating continuity per ASTM and ISO standards.

What packaging methods are available?

Standard packaging is UV‑stabilized film on wooden pallets with steel strapping. Options include reusable plastic crates, cardboard sleeves for smaller rolls, or custom crating for oversized dimensions.

How are export shipments protected?

Export loads incorporate desiccant units, corner boards, and stretch‑film wrapping. All pallets are fumigated or heat‑treated as required by destination country regulations.

What is the typical production lead time?

Lead time ranges from 2 weeks for standard configurations to 5‑6 weeks for customized alloys or special colors, depending on raw material availability and production scheduling.

How are samples arranged?

Sample lengths of 1 meter are available upon request, shipped via courier with a handling fee that is creditable against a subsequent order.

Contact Us

For technical inquiries, quotation requests, or sample arrangements, please reach out to our engineering team.
